AGSM-3DB-SMA

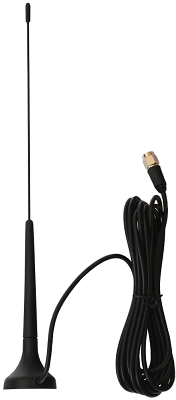

Omnidirectional magnetic GSM antenna 3 dBi
The antenna is designed for signal reception / transmission in GSM (2G) technologies in the 900/1800 MHz operating bands
The built-in magnet allows easy and quick installation of the antenna on metal surfaces. The antenna includes a 3 m cable terminated with an SMA connector.
This antenna is standardly included in the basic accessories of telemetry stations located in the ARIA32 and SCHNEIDER cabinets.
Technical parameters
Gain: 3 dBi
Cable: 3 m
Connector: SMA
Technology: GSM
Mounting method: magnetic
Polarization: linear
Impedance: 50 Ω
VSWR: <1.8: 1
Beam angle: H 360 ° E 30 °
Operating temperature: -30 °C to + 80 °C
Design: external

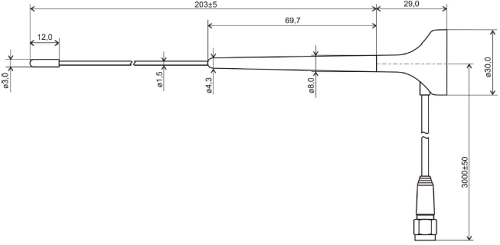

Dimensions: 232 x 30 mm
Weight: 52 g
