Omnidirectional mounting GSM antenna 2 dBi

GSM antenna adapted by its construction for easy installation on a metal roof, cover, etc. Vandal-resistant mechanical design. The antenna is fixed to metal surfaces (box N, body, ...) using a cap nut into a hole with a diameter of 15 mm.

The antenna is designed for signal reception / transmission in GSM (2G) technologies in the 900/1800/1900/2100 MHz operating band

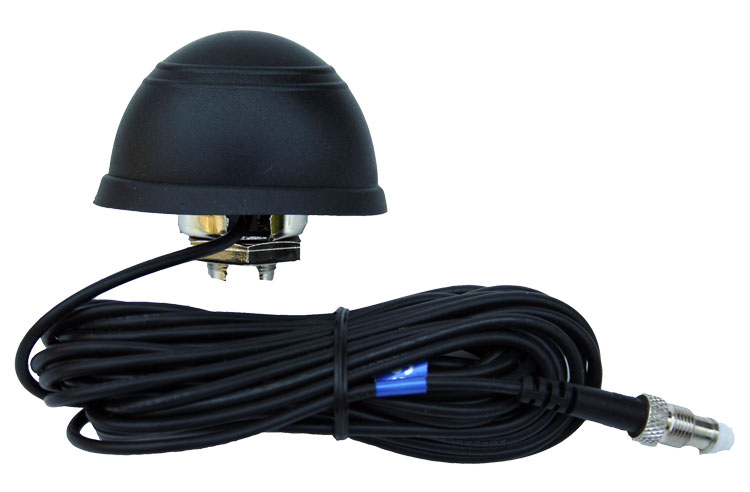

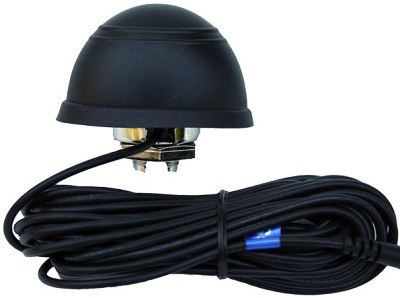

The antenna includes a 5 m cable terminated with an SMA connector.

Technical parameters

Gain: 2 dBi

Connector: SMA

Cable: 5 m

Technology: GSM

Mounting method: in a hole with a diameter of 15 mm

Polarization: linear

Impedance: 50 Ω

VSWR: <1.7: 1

Beam angle: H 360 ° E 30 °

Operating temperature: -30 ° C to + 80 ° C

Location: outdoor

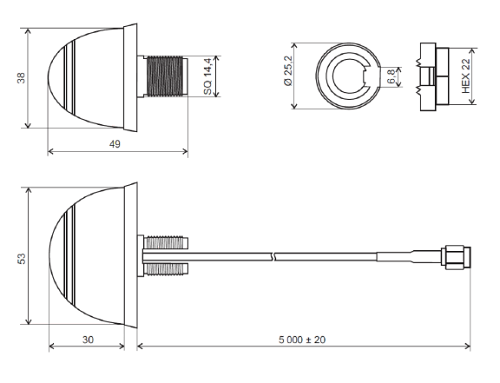

Dimensions: 53 x 38 x 30 mm

Weight: 113 g
