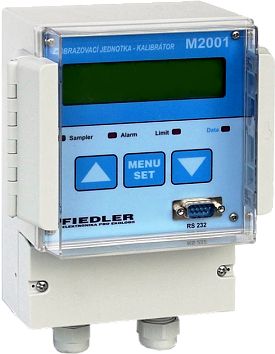

M2001Q - Flow meter

Sestava pro měření průtoku v otevřeném profilu



Single-channel unit for measuring and displaying instantaneous flow and time recording of instantaneous flows as well as daily and monthly flow volumes, preset consumption equations for the most common types of simple and compound Parshall (Venturi) measuring troughs and some specific overflows, supply voltage 12-24 VDC.



Outputs:

  • 3x switching contact 6A / 230VAC (alarm relay, sampler, limit)
  • Active separate 4-20 mA current output (additional 4-20 mA current output on request)



Single-channel unit designed for flow measurement in an open channel

  • Input for connection of one ultrasonic or strain gauge level sensor
  • Optional archiving interval from 1 min to 1440 minutes
  • Daily flow volumes can be shown on the display
  • Low cost

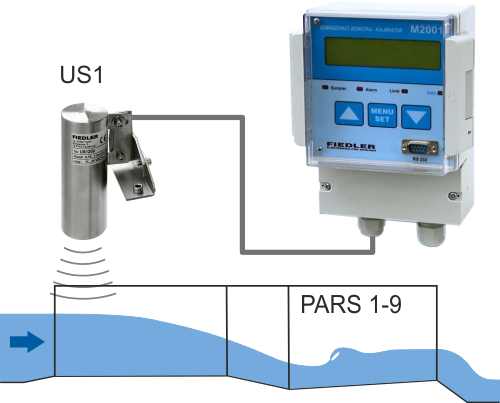

M2001Q průtokoměr PARS US1200
