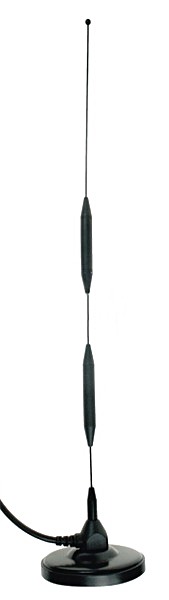

Omnidirectional magnetic GSM antenna 9 dBi

anténa GSM/LTE 5 dbi magnetická

The high gain of 9 dBi predestines this antenna for use in places with a weak signal.

The antenna is designed for signal reception / transmission in GSM (2G) and UMTS (3G) technologies in the 900/1800/2100 MHz operating bands

The built-in magnet allows easy and quick installation of the antenna on metal surfaces. The antenna includes a 2 m cable terminated with an SMA connector.

Technical parameters

Gain: 9 dBi

Connector: SMA

Cable: 2 m

Technology: GSM / UMTS / LTE

Mounting method: magnetic

Polarization: linear

Impedance: 50 Ω

VSWR: <1.8: 1

Beam angle: H 360 ° E 30 °

Operating temperature: -40 °C to + 80 °C

Design: external

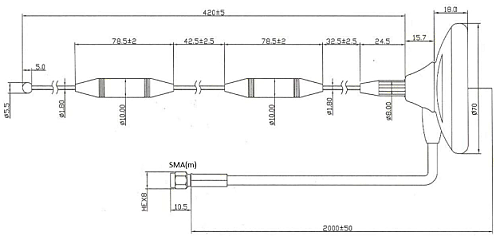

Dimensions: 455 x 70 mm

Weight: 245 g
