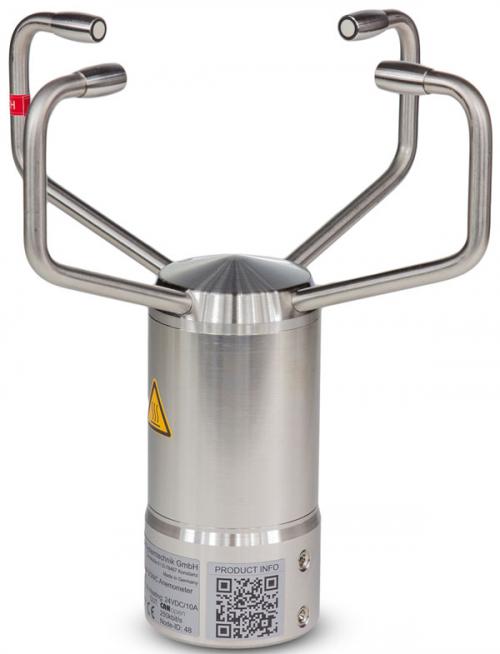

4310 Precise ultrasonic anemometer

2D přesný ultrazvukový anemometr

Highly accurate ultrasonic anemometer with RS485 output compatible with FIEDLER recording units

Robust design of the device without moving parts

High measurement accuracy given by optimized aerodynamic design of ultrasonic sensors

Supply voltage in a wide range of 9 to 36 VDC

Variant design with outputs RS422, 0..10V, 4-20 mA, CAN, ...

Optimized design

The design of the mechanical design of the ultrasonic anemometer was also made with the help of SW simulation. As a result, turbulence occurring on ultrasonic transducers was minimized.

Sonic anemometr

Reducing turbulence to a minimum resulted in a maximum increase in the accuracy of wind speed and direction measurements.

Application

- Professional weather stations

- Intelligent building management (heating, clinization, ventilation, ...)

- Industrial buildings and security of building structures

- Science and research - environmental monitoring

Technical parameters

Parameetrs	Value
WIND SPEED MEASUREMENT
Measuring range:	0..75 m/s (0..85 m/s; 0..90 m/s)
Measurement accuracy:	±0,1 m/s for v≤5 m/s; ±1,5% from the measured value for v>5 m/s
Starting threshold:	0,1 m/s
Resolution:	0,1 m/s or 0,01 m/s
MEASUREMENT OF WIND DIRECTION
Measuring range:	0..359°
Measurement accuracy:	±1°
Resolution:	1° or 0,1°
AIR TEMPERATURE MEASUREMENT
Measuring range:	-55..+70 °C
Measurement accuracy:	0,5 K
Resolution:	0,1K or 0,01K
DATA OUTPUT
Serial communication:	RS422 full duplex / RS485 half duplex (1200..115200 Baud)
Analog output:	0/4..20 mA nebo 0..10V (16 bit)
Protocol:	ASCII / MODBUS / NMEA
OWER SUPPLY AND DIMENSIONS
Power voltage:	9..36 V DC / 100 mA; 24 V DC (+15%; -50%)
Dimensions:	diameter 220mm, height 221 mm
Material:	stainless steel V4A
OTHER PARAMETERS
Weight	1,4 kg
Cover:	IP67
Operating temperature range:	-55..+70 °C (with additional sensor body heating)
