Measuring spillways

Measuring spillways with a triangular cross-section



MTP90

MTP60

MTP45

MTP30

MTP20

Qmax [l/s]

240

139

100

65

42,6

Angle α

90°

60°

45°

30°

20°

A1 [-]

1,3310

0,7701

0,5533

0,3585

0,2363

A2 [-]

2,47

2,47

2,47

2,47

2,47

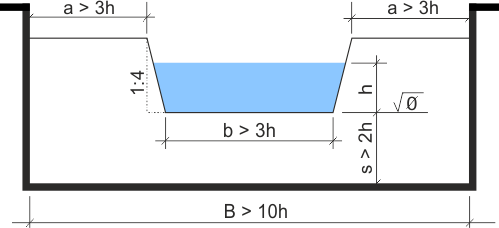

Trapezoidal Cipoletti measuring spillway

Combined measuring spillways

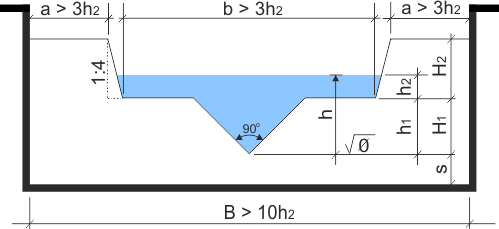

Combined Cipoletti and Thomson measuring spillways

Složený Cipolettiho a Thomsonův měrný přeliv
