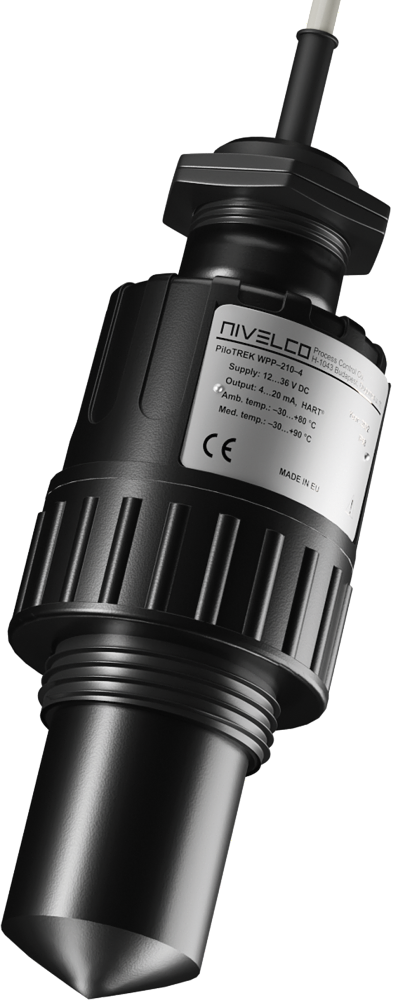

WPA-214-4 PILOTREK - radar level sensor
WPA-214-4 PILOTREK - Radar level gauge
PILOTREK is a low-cost radar level sensor designed as a qualitatively higher replacement for ultrasonic sensors, especially in water and wastewater treatment.
The flood-proof housing of the sensor with IP 68 protection ensures its long-term maintenance-free operation.
Advantages
- High measurement accuracy up to ±5 mm
- Virtually zero temperature dependence
- Measurement is not affected by pressure or dust
- Accurate measurement even in the presence of foam on the surface
- Zero deadband below the sensor (with slightly increased measurement inaccuracy in the area up to 25 cm below the sensor)
- Narrow radiation angle of 7° allows the sensor to be used even in confined spaces in underground sumps
- Independence of measurement from ambient noise generated during filling of the tank
- User-friendly adjustment of the limits without the need to fill and empty the tank
- No maintenance requirements (no condensation or dust on the sensor)
- Inexpensive radar sensor as a qualitatively superior replacement for ultrasonic sensors
- Two-wire 4-20 mA connection to stations H1, H2, H3, H7, Q2, even in battery-powered sets operating in switched mode
Oblasti použití
Bezkontaktní měření výšky hladiny kapalin a kalů nebo sypkých látek větších frakcí.
Snímač je schopen měřit kapaliny a to i pod vysokým tlakem a za extrémních teplot. Lze jej proto použít při sledování hladiny jímek odpadních vod. Snímač je vhodný i pro aplikace s nejvyššími hygienickými požadavky. Měření přitom není ovlivněno ani kondenzací na snímači nebo pěnou na měřené hladině.
Při měření sypkých látek je snímač odolný jak proti akustickému rušení při plnění, tak proti vysoké prašnosti a ulpívání prachu na snímači.
The principle of measurement
The sensor transmits a frequency modulated radar signal in the 80 GHz band via an antenna system. The frequency of the signal varies in a sawtooth pattern. The transmitted signal reflected from the medium is received by the antenna as an echo with a changed frequency. The change in frequency is proportional to the measured distance.
Technical parameters
- Maximum measuring range: 10 m
- Process connection: threaded connection: G1½
- Process temperature: -40...80 °C
- Process pressure: -1...3 bar (-100...300 kPa)
- Accuracy: ±5 mm
- Frequency: 77-81 GHz
- Radiation angle: 7°
- Zero deadband
- Wetted parts: PVDF
- Degree of protection: IP66/IP68 (3 bar)
- Output signal: 4...20 mA
- Ambient temperature: -40...+60 °C
- Supply voltage 12...36 V DC
- PVC connection cable: length 5 m, diameter 6 mm
- SMART protocol for parameter setting (BT also in preparation)
Holders and radiation covers for radar level gauges
The stainless steel holder DUK1 or DUK2 can be ordered together with the PiloTREK level gauge. Both holders are characterized by their robust design and contain a radiation sensor cover open on only one side, which can also serve as a protection against vandalism.
The DUK1 holder is designed for mounting on a vertical mast using stainless steel Bandimex strips, the DUK2 holder is adapted for mounting on a horizontal boom using stainless steel brackets.
