ESK11 - dissolved oxygen sensor

• Possibility of direct connection of the sensor to the M4016 unit (H7, H3, E2) via the RS485 serial interface under the FINET communication protocol
• Robust design with replaceable sensor, sensor length from 50cm to 2m (standard 170 cm)
• Lower price compared to the M2001-EK set, calibration from the M4016 unit or from a PC
• Possible connection of several sensors to one M4016 station via one RS485 bus
• Reliable and affordable sensor with a long service life

Sensor characteristics

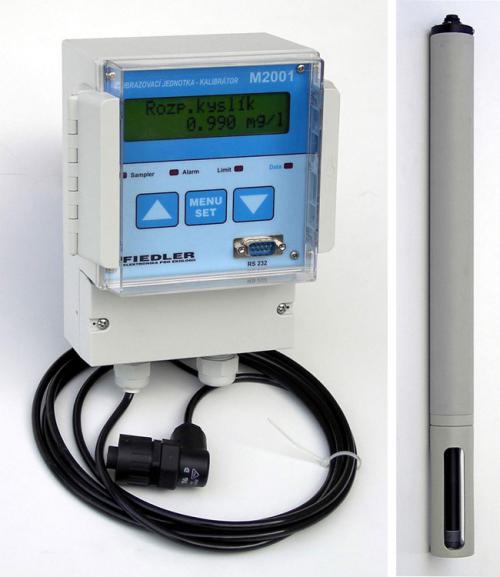

The ESK11 rod sensor contains its own microprocessor measuring unit, which provides measurement and temperature compensation of dissolved oxygen and communicates with the environment via the RS485 bus under the FINET protocol. Therefore, the sensor can work both with the M2001-E calibration unit and directly with the M4016 recording unit, which also contains a program procedure for sensor calibration. This can be advantageously used when measuring dissolved oxygen in the field and wherever the calibration unit would be difficult to place or where it is necessary to keep the purchase price of the measuring assembly low.

Connecting multiple sensors to the control unit

The adjustable sensor address allows up to 12 ESK11 sensors to be connected to one RS485 bus. As standard, a 5 m long connection cable is supplied with the sensor, terminated on one side with a connector with high IP67 protection. The length of the connecting cable can be extended up to 500 m.

Measuring sensor

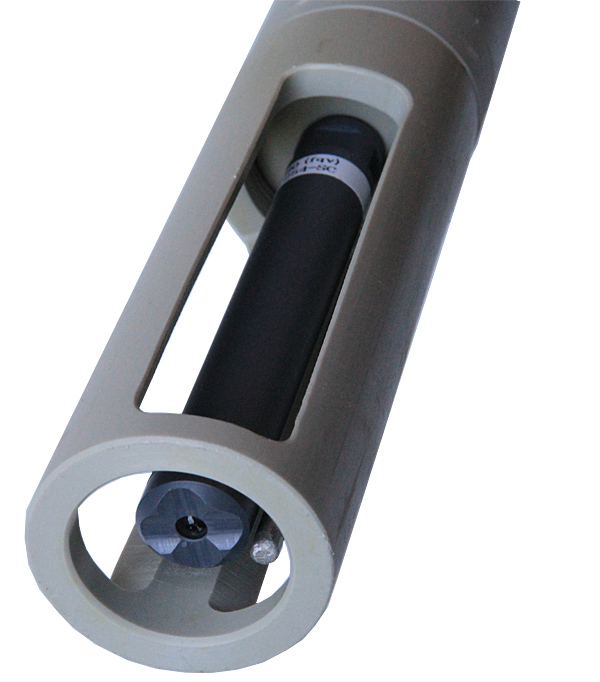

The sensor in its lower part under the removable cover contains the oxygen number OC 254 from the company THETA 90.
