DUK1, DUK2 - level meter holders with protective cover

          DUK1, DUK2 - držáky hladinoměru s ochranným krytem            DUK1, DUK2 - držáky hladinoměru s ochranným krytem

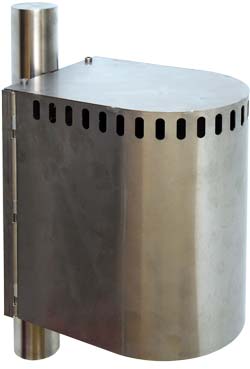

                                    DUK1                            DUK2

Stainless steel holders of ultrasonic and radar level meters DUK1 and DUK2 are designed for firm and stable mounting of ultrasonic level meters or radar level meters over open flow, open sludge sump, etc. An integral part of both holders is a stainless steel radiation cover, which on the one hand prevents deterioration of the level meter measurement accuracy due to heating of the sensor body by radiant radiation and also increases the mechanical protection of the sensor against possible vandal attacks.

Mounting methods

The DUK2 boom bracket is installed on a horizontal square or round boom with a mag diameter of 50 mm using stainless steel brackets, which can be supplied with the bracket.

The DUK1 bracket does not include a boom bracket and installs on a pole or mast using stainless steel bandimex straps.

The mechanical design of the holder allows precise adjustment of the ultrasonic (radar) level meter to the vertical axis. The adjusting elements make it possible to change the inclination of the installed level meter in one plane.

DUK1 and DUK2 holders can be used for ultrasonic level meters:

  •      US1200 to US4200
  •      EasyTREK-SPA series


and PiloTREK radar level meters.
